Jaguar Land Rover Diagnostics kit IDS SDD JLR + Cable +Panasonic CF D1 Tablet Deal

2020, 2019, 2018, 2017, 2016, 2015, 2014, 2013, 2012, 2011, 2010, 2009, 2008, 2007, 2006, 2005, 2004, 2003, 2002, 2001, 2000, 1999, 1998, 1997, 1996
[Sign in to view price]
Jaguar Land Rover Diagnostics kit IDS SDD JLR + Cable +Panasonic CF D1 Tablet Deal, Compatible VCM Type Options: JLR Mongoose Non OEM    (2006-2012 SDD Only), image Jaguar Land Rover Diagnostics kit IDS SDD JLR + Cable +Panasonic CF D1 Tablet Deal, Compatible VCM Type Options: DoIP Dongle (D-PDU Pass Thru)     ( 2006-2023+    SDD + Pathfinder + topix cloud ) , image Jaguar Land Rover Diagnostics kit IDS SDD JLR + Cable +Panasonic CF D1 Tablet Deal, Compatible VCM Type Options: DOIP Bosch Original VCM OEM   (2006-2023+  SDD + Pathfinder + Topix cloud), image
Jaguar Land Rover Diagnostics kit IDS SDD JLR + Cable +Panasonic CF D1 Tablet Deal, Optional Docking station UK Shipping ONLY: Yes Please CF-D1 - CF-VEBD11 docking station, image
Panasonic CF D1 JLR Deal
In stock
Please sign in to buy

This product cannot be added to the
cart because you are not logged in.

Why it’s useful having your own Jaguar & Land Rover Diagnostic kit?

We have tailored this package for both the JLR Specialist as well as the JLR Enthusiast.



V131 Native  SP  or   Win 10  with Latest SDD Ready setup

V131  ok for Jags  1995 to  2011   and Land  Rover 2006  to  2011

V163  Latest Sdd you will get always  and on windows 10  ok for jag land rover  2006  to   2015

Note mongoose ok  till  2013   SDD cars   but 2013  mostly need better multican interface and best get orognal approved by JLR VCI  in options

In the last 7 years the diagnostics industry has boomed. Vehicles have become more complicated with more electrics and fast moving technology piled in. The end result of having all these “mini computers” running in your vehicle is that when it goes wrong they require another computer to diagnose what is wrong and fix them.

The Jaguar and Land Rover Diagnostic kits are suited to various types of people.

If you plan on doing your own repairs on your JLR vehicle then it goes without saying that you really do need your own diagnostic kit. Being able to have access to something like IDS & SDD when finding out which part has failed is absolutely crucial. It speeds up your diagnostics and more importantly makes it far more accurate. With a good quality diagnostic kit you can avoid replacing parts unnecessarily in hope of curing your fault.



Check out Latest version OEM Dealer software's packages

Mongoose Pro Jaguar-Land Rover (JLR)

SPECIFICATIONS Processor:

Intel 847
Processor speed:

1.10 GHz RAM:

4G or 4GB or 8GB

250 GB Hdisk standard optional SSD Hdisk




Generally

Grade C Has Many Marks  & Many Flaps + Stylus Missing  +  Non Original charger

Grade B  Has few Marks & few Flaps + Stylus Missing   +   Non Original charger

Grade  A  Has very few Marks & No Flaps + With Stylus   +   Original Genuine Panasonic made Charger

Screen Resolution:

1366 x 768 Hd



Good Laptop

All ready loaded and pre configured

A Must for any enthusiast or Garage workshop owner



have best of both words



take the headache out spending hours getting the software running





Call. 0330. 2233446. For more details

  • Jaguar-Land Rover has approved the Mongoose Pro
  • JLR as a supported interface and will offer it directly to Jaguar and Land Rover dealerships as the factory diagnostics tool.
  • Mongoose Pro JLR is a low cost VCI for factory diagnostics and reprogramming.
  • Diagnostics Trouble Codes
  • Data Lists
  • Active Tests
  • Monitor
  • Utility tests
  • Reprogramming

Key Features

    • USB support for HSCAN, MSCAN, J1850PWM, ROSCO, and ISO9141/KWP2000 vehicles
    • Simple packaging with electronics contained inside the cable.
  • Unique Advantages
    • Jaguar and Land Rover approved low cost interface
  • Bus Protocols
    • CAN Bus (capable of ISO 15765, GMLAN, and ISO14229)
    • Medium Speed CAN
    • J1850PWM / SCP
    • ISO9141 / KWP2000
    • ROSCO
  • Other
    • J2534 and J2534-1 compliant device driver
    • Commercial Range (0 to +70 C)
    • Dimensions: 3" x 1.75"
    • Operating Voltage: Bus-powered by USB
    • Host Interface: Full-speed 12 mbps USB 2.0 with J2534 device Driver

IDS (Integrated Diagnostic Software)

IDS was used by Jaguar dealerships for vehicles manufactured pre-2005. Land Rover also used IDS however the interface we can only supply will only work with the Jaguar side of IDS.

The user interface does look dated compared to the newer SDD however it is still a very reliable piece of software that is still used in the Jaguar dealerships through out.

Our IDS software is only suitable for Jaguars pre-2005, it is not suitable for any Land Rover pre 2005.

It allows you to do the following:Fault Code Reading / Resetting analysing for repairs

  • Service Lights
  • Read / Clear / Reset Air bag Light codes
  • Read / Clear / Reset ABS Light codes
  • Programming Modules
  • Programming personalisation like ride height or folding wing mirrors.
  • Activate pumps for brake bleeding
  • Program new DSC units
  • Program ABS Units







SDD (Symptom Driven Diagnostics)



SDD is the latest development by JLR in vehicle diagnostics. Designed to be easy to use and extremely efficient in fault finding. Conventional diagnostic systems read fault codes and offer them to the end user. It is then upto the the end user to analyse the codes and find the vehicle fault from the data that has been provided.

SDD instead asks the end user the fault with the vehicle and progresses to analyse the fault codes and offers the solution to fix the vehicle on a relevance to likely ratio.

Should you wish to intervene and only see the fault codes then this option is open to the end user but keep in mind, SDD was developed to recommend the repairs.

Alongside diagnostics the service functions allows vehicle and module programming and vehicle customisation.

A selection of what can be done with SDD:

  • Fault Code Reading / Resetting analysing for repairs
  • Service Lights
  • Read / Clear / Reset Air bag Light codes
  • Read / Clear / Reset ABS Light codes
  • Programming Modules
  • Clearing adaptions
  • V130 Programming extra keys
  • Programming personalisation like ride height or folding wing mirrors.
  • DPF Regeneration
  • Activate pumps for brake bleeding
  • Adjust vehicle heights
  • Program new DSC units







Making SDD effective when selecting Vehicle symptoms for your Jaguar & Land Rover

SDD is designed to link DTCs and provide recommendations based on Customer Facing and/or the most significant symptoms. Do not try to short-cut or refine the customer’s reported symptoms based on expected failures. If the primary or most obvious Customer Facing symptom is an MIL or message center warning, those symptoms MUST be included in your symptom selection inputs using SDD. While it might seem logical when selecting ‘Air Suspension is inoperative’ that there is really no need to select the symptom ‘Message center warning’, it is important to do so. Otherwise SDD may exclude DTCs or recommendations that relate to failures known to trigger a warning message or MIL. Be sure to select any additional symptoms observed during a road test in addition to the most obvious symptoms and customer reported info. Altering the selected symptoms adjusts the filtering of the DTCs. Selecting fewer symptoms makes the filter ‘coarser’ while selecting more symptoms makes the filter ‘finer’.
  • If very few or no DTCs and recommendations are
listed, try restricting your symptom selections to Level 3 in the symptom tree.
  • If too many DTCs or recommendations are listed, try
selecting symptoms to Level 4 or 5, using care not to select an inaccurate symptom.
  • To be sure that you are only working with your
intended symptom list: open the ‘Selected Symptoms’ drop down box at the upper right portion of the Symptom Selection tab to review all currently selected symptoms. Avoiding Common SDD Symptom Selection Errors Powertrain > Engine system > Starting system > Start-stop system: Note that the Start-Stop System is a fuel conserving technology used on diesel vehicles sold in other markets. This is not associated with the ‘Start Button’ used to actuate the ignition on Smart Key equipped vehicles. Warning Lamps, Status Lamps, and Message Center Use care when entering symptoms related to customer complaints of MIL lights and warnings. When a light and a message are reported or observed, both of these symptoms must be included. When viewing the symptom categories within the Electrical > Instrument Cluster section, there are 3 classes of ‘driver information’ symptoms:
  • Warning Lamps (red)
  • Warning Messages (in Message Center)
  • Status Lamps (yellow)

While it is easy to distinguish between a Warning Message and a Warning Lamp that is currently active, if the problem is intermittent, the service writer must determine through careful questioning of the customer if a warning lamp, warning message, or both were displayed. Also, not every MIL is considered a Warning Lamp since some indicators on the instrument cluster are used to indicate the status of a system. Examples of Status Lamps include the Passenger Seat Occupancy Status Lamp and the TPMS Status Lamp. Using the Passenger Seat Occupancy Status Lamp as an example: this light is only used to indicate the status of the passenger seat. When lit, it simply indicates that the SRS system has determined that based on the current inputs, the passenger restraints will not be deployed. It does not mean the system has detected a failure that requires a driver warning. For this reason, the lamp is classified as a Status Lamp. Similarly, the amber TPMS indicator is used to inform the driver that the tire pressure requires attention. While this light may remain lit when a system malfunction exists, it is considered a Status Lamp since its primary function is to inform the driver of the tire pressure status. Recommendation: When selecting SDD symptoms for lamps that are primarily considered a Status Lamp, but are also known to have a secondary function as a Warning Lamp, be sure to select the symptoms under both categories in the symptom selection map.



New Diagnostic Process

IDS has been updated with the goal of providing a clear diagnostic strategy and tool navigation path to the technician. With Symptom Driven Diagnostics (SDD), the technician is able to begin the diagnostic process by identifying the specific symptoms of a customer concern using Symptom Maps incorporated into the

SDD software. A diagnostic strategy can then be structured around only the DTCs that are relevant to those symptoms. SDD can also provide links to other service information to support the diagnostic process.

Symptom Maps

Symptom Maps are incorporated into the SDD software, and allow the technician to target DTCs and diagnostic routines based on a specific set of symptoms. Symptom Maps are organized by major vehicle system as follows:

  • Module Communications Network
  • Chassis
  • Powertrain
  • Electrical
  • Body

Maps are then further structured by System and Sub-System details to provide lists of possible symptoms at 2 levels.

Symptom Maps are used by SDD in conjunction with DTCs. In order to ensure the best possible recommenda- tions to achieve FRFT repairs,

the technician must input ALL vehicle symptoms that match the customer concern.



The Integrated Diagnostic System (IDS) core architecture dates from 1999 and incorporates elements going back as far as 1995. In the meantime,

vehicle technology has become more complex and the number of vehicle variants has increased.

Current vehicle systems support up to 4,000 different Diagnostic Trouble Codes (DTCs), which increases the complexity of diagnostics.

The technician now needs to diagnose systems, not merely individual components.

Without a clear strategy for a repair process, a technician faced with up to 40 DTCs at the start of an IDS session can easily lose confidence in the diagnostic tool.

Feedback data from dealerships shows inconsistent methods of fault diagnosis with under utilization of the IDS capabilities.

This has resulted in high ‘No Fault Found’ repair rates, difficulty in achieving Fixed Right First Time (FRFT) repairs, and an increase in the time that a customer’s vehicle is off the road.

Why it’s useful having your own Jaguar & Land Rover Diagnostic kit?

In the last 7 years the diagnostics industry has boomed. Vehicles have become more complicated with more electrics and fast moving technology piled in. The end result of having all these “mini computers” running in your vehicle is that when it goes wrong they require another computer to diagnose what is wrong and fix them.

The Jaguar and Land Rover Diagnostic kits are suited to various types of people.

If you plan on doing your own repairs on your JLR vehicle then it goes without saying that you really do need your own diagnostic kit. Being able to have access to something like IDS & SDD when finding out which part has failed is absolutely crucial. It speeds up your diagnostics and more importantly makes it far more accurate. With a good quality diagnostic kit you can avoid replacing parts unnecessarily in hope of curing your fault.

CF 52 Toughbook available in options



Supported Vehicles

JLR IDS SDD PATHFINDER YEARS COVERED
:
  • 2020
  • 2019
  • 2018
  • 2017
  • 2016
  • 2015
  • 2014
  • 2013
  • 2012
  • 2011
  • 2010
  • 2009
  • 2008
  • 2007
  • 2006
  • 2005
  • 2004
  • 2003
  • 2002
  • 2001
  • 2000
  • 1999
  • 1998
  • 1997
  • 1996

JLR IDS SDD PATHFINDER SOFTWARE FEATURES

DTC Code Retrieval:
  • Retrieve OE DTC with code Definition
  • Link DTC to service information
  • Customizable PID display
Data Logging:
  • Body
  • Chassis
  • Electrical
  • Powertrain
  • Pressure/Vacuum Tests
Bi-Directional tests:
  • Body
  • Chassis
  • Electrical
  • Powertain
Network Test:
  • CAN
  • J1850/ISO9141/SCP
Module Programming:
  • Programmable Module Installation (PMI) procedures
  • Module Reprogramming (Reflash)
  • Coding
  • Supplemental restraints initialization
  • Programmable Parameters ( ability to change in service settings ie, tire size, personality, customer convenience etc.)
Body Controls:
  • Anti-theft System Functions
  • Remote Keyless Entry
  • Restraints (supplemental restraints and seat belts)
Chassis Tools:
  • ABS Service Bleed
  • ABS/ Brake system functions
  • IVD Initialization Sequence
  • Ride Height Calibration ( for vehicles with pneumatic or hydraulic ride height controls)
  • Cruise Control System tests
  • Tire pressure monitor functions
  • Electronic Ride control
Electrical Tools:
  • Charging System Tests
  • Parking Aid Tests
  • Audio
Powertrain Tools:
  • EVAP Evaporative Emission Control System
  • Fuel System Test/Relative Injector Flow Test
  • Bi-directional control of fuel components
  • Bi-directional Ignition System control
  • Power Balance Test
  • Transmission bi-directional Tests
  • Engine Checks and OBD Tests (Drive Cycle, Mode 01, Mode 06 & Mode 09)
  • EGR Test
Digital Multimeter:
  • Basic DMM functions
  • Current measurements (50 Amps/500 Amps)
  • Pressure/Vacuum measurements
PROGRAMMING KEYS & TRASPONDERS:
  • YES SUPPORTED
IDS Legacy Tools for Jaguars 1997 -2005:
  • V131 Supports IDS for Pre 2006 Vehicles
  • YES SUPPORTED
SDD Supported Languages:
  • Chinese(China)
  • Chinese(Taiwan)
  • Dutch
  • English
  • French
  • German
  • Italy
  • Japanese
  • Korea
  • Portuguese
  • Portuguese(Brazil)
  • Russian
  • Spanish
  • Spanish(Mexico)

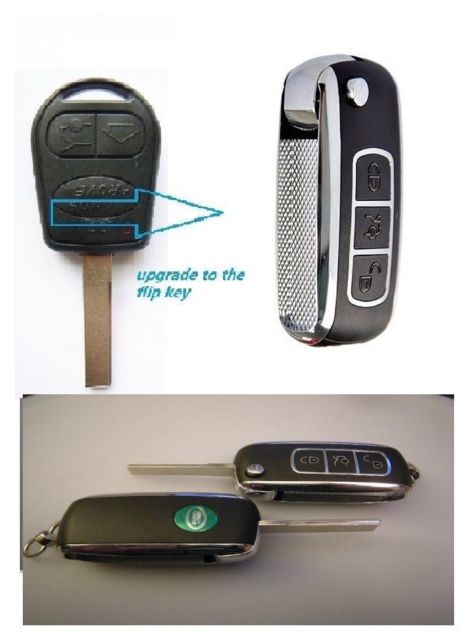

Panasonic Toughbook CF-52 + Land Rover and Jaguar diagnostic kit (Range_Land_Rover_L322_Remote_flip_Key_Upgrade_2002-2006_Vogue_HSE.jpg, 31 Kb) [Download]

JLR SDD USER GUIDE PDF (IDS-SDD-JLR_Manual.pdf, 39,390 Kb) [Download]
