VAS6154 OE Dealer Tool VAS6154 VW, Audi, Seat, Skoda, Bently & Lamborghini

The VAS6154 can be used with all VW, Audi and Skoda vehicles from 2000 onward including NEW & FUTURE MODELS under production.

This VAS6154 Interface is the latest interface for the diagnostic and programming applications VAG ODIS-S (Service) and ODIS-E (Engineering), it replaces the VAS 5054A. Available for Off-board Diagnostic Information Engineering from version 6.2 onward and Off-board Diagnostic Information Service from version 3.0.3 onward.

Product Features

Infrastructure mode - In infrastructure mode, several network-capable devices can be connected together (network subscribers). For a wireless network, a WLAN access point is required. This access point forms the connection to WLAN-ready subscribers.

Point-to-point connection - With point-to-point connection via a wireless network, VAS 6154 creates a radio network. VAS 6154 thereby adopts the role of a radio access point (Access Point). A direct connection is made between the diagnosis unit and the diagnosis interface VAS 6154. VAS 6154 is configured using the web-based user interface.

[Sign in to view price]
VAG Group Dealer Level Diagnostics Programming Laptop ODIS Pre I
In stock
Please sign in to buy

This product cannot be added to the
cart because you are not logged in.

The VAS6154 can be used with all VW, Audi and Skoda vehicles from 2000 onward including NEW & FUTURE MODELS under production.

This VAS6154 Interface is the latest interface for the diagnostic and programming applications VAG ODIS-S (Service) and ODIS-E (Engineering), it replaces the VAS 5054A. Available for Off-board Diagnostic Information Engineering from version 6.2 onward and Off-board Diagnostic Information Service from version 3.0.3 onward.


Application:

The diagnosis interface VAS 6154A with wireless networking technology supersedes diagnosis interface VAS 6154. It can be used with ODIS Service (Offboard Diagnostic Information System – Service), version 5.0.0 or higher, and with ODIS Engineering (Offboard Diagnostic Information System – Engineering), version 9.0 or higher. It enables wireless data transmission from the interface in the vehicle to the diagnosis unit. On modern vehicles, diagnostic functions can only be carried out at full CAN-FD speed with this diagnostic interface. If a wireless connection is not possible/permissible, the USB module is used, which guarantees a reliable wired data transmission to the diagnosis unit. Infrastructure mode In infrastructure mode, several network-capable devices can be connected together (network subscribers). For a wireless network, a wireless access point is required. This access point forms the connection to wireless-enabled subscribers. Point-to-point connection With point-to-point connection via a wireless network, VAS 6154A creates a radio network. VAS 6154A thereby adopts the role of a radio access point (Access Point). A direct connection is made between the diagnosis unit and the diagnosis interface VAS 6154A. VAS 6154A is configured using a web-based user interface. Design and Features: With wireless network module and USB module Permission to use the radio network has been granted for the following countries: A, AUS, B, BIH, BR, CDN, CH, CY, CZ, D, DK, DZ, E, EST, F, FIN, GB, GR, H, HK, I, IL, IND, IRL, IS, J, L, LT, LV, M, MA, MEX, N, NL, NZ, P, PL, RA, RC, ROK, RUS, S, SGP, SK, TR, TN, UA, UAE, USA, ZA

Technical Specifications:

  • Dimensions: approx. 136x48x25mm
  • Weight: approx. 150g
  • Power supply: 8-18V via vehicle connector
  • Output: approx. 5W
  • Temperature range: storage -20°C to +85°C, operation -20°C to +40°C
  • PC interface (wired): USB 2.0 high speed, 480 Mbps or fast Ethernet, 100 Mbps (via LAN module)
  • PC interfaces (wireless): wireless standard 802.11 ab/b/g/n 2T2R 300 Mbps client mode (WPA2 EAP-TLS, WPA2 PSK)
  • AP mode (WPA2 PSK)

Items supplied:

  • Diagnosis interface VAS 6154A (complete unit):
  • Interface module VAS 6154A/1
  • Base station VAS 6154/2
  • USB Y-cable VAS 6154/3
  • USB module VAS 6154/4A
  • Wireless network module VAS 6154/5
  • Module ID labels VAS 6154/6
  • Storage case
  • Printed quick reference guide (4 languages: German, English, French, Spanish)
  • USB flash drive with PDF quick reference guide (4 languages) and PDF instruction manual (all 39 languages)

Replacement parts:

  • Base station VAS 6154/2; ASE 405 433 00 000
  • USB Y-cable VAS 6154/3; ASE 405 434 00 000
  • USB module VAS 6154/4A; ASE 405 435 01 000
  • Wireless network module VAS 6154/5; ASE 405 440 00 000
  • Module ID labels VAS 6154/6; ASE 405 437 00 000

Recommended Accessories: LAN module

Warranty:

24 Months

Manufacturer:

I+ME ACTIA GmbH

Product Specification

AUDI Auto Ship Number
AUDI RequirementOptional
AvailabilityAvailable
Superseded To
Tool ClassDIAGNOSTICS
Tool NumberVAS6154A
VW Auto Ship Number
VW RequirementOptional


What is VAS6154 VW, Audi, Seat, Skoda, Bently & Lamborghini Tool

The VAS6154 can be used with all VW, Audi and Skoda vehicles from 2000 onward including NEW & FUTURE MODELS under production.

This VAS6154 Interface is the latest interface for the diagnostic and programming applications VAG ODIS-S (Service) and ODIS-E (Engineering), it replaces the VAS 5054A. Available for Off-board Diagnostic Information Engineering from version 6.2 onward and Off-board Diagnostic Information Service from version 3.0.3 onward.

Infrastructure mode

Infrastructure mode - In infrastructure mode, several network-capable devices can be connected together (network subscribers). For a wireless network, a WLAN access point is required. This access point forms the connection to WLAN-ready subscribers.

Point-to-point connection

Point-to-point connection - With point-to-point connection via a wireless network, VAS 6154 creates a radio network. VAS 6154 thereby adopts the role of a radio access point (Access Point). A direct connection is made between the diagnosis unit and the diagnosis interface VAS 6154. VAS 6154 is configured using the web-based user interface.

What models of VAG does it support

The VAS 6154 can be used with all VW Audi Skoda vehicles from 2000 onward including NEW & FUTURE MODLES under production. This VAS 6154 Interface is the latest interface for the diagnostic and programming applications VAG ODIS-S (Service) and ODIS-E (Engineering), it replaces the VAS 5054A. Available for Off-board Diagnostic Information Engineering from version 6.2 onward and Off-board Diagnostic Information Service from version 3.0.3 onward.

You will need a valid registration ( ORG ID ) VW Uk to use ODIS

You will need a valid registration ( ORG ID ) VW Uk to use ODIS we cannot set up your laptop before you have this , the application proceed typically takes 1 month , you need a UK vat number ( or a letter of intent from accountant ) and a legitimate company registration , and have no VAG group logos on you website .


if in the mean time your dont have the login  you can get the one time or 1 hour or month geko login from us


Multi make diagnostic tools all have their limitations, increasingly control units require reprogram/Updates/Re-Flash of ECU’s with the latest software from the vehicle manufacturer, for this operation only an Original OEM or approved Pass-thru tool is required.

Save time and make money by investing in this level of tooling, it will Increase your workshop footfall, customer loyalty and save many man hours, moving cars to mains dealers for repairs.

Why are original OEM Diagnostic tools are required?

For now can use VAG clone interfaces but later will not be possible when gets locked down

Vehicle manufacturers have all taken their diagnostic software away from standalone diagnostic tools and onto their own web portals. This enables them to have a very secure way of controlling who and how anyone has access to their data and information.

Copy or clone tools were often used, but as the manufacturers portal became more sophisticated these clones will not work, the portals will only recognize either original or an approved pass-thru tool.

OEM PASS-THRU

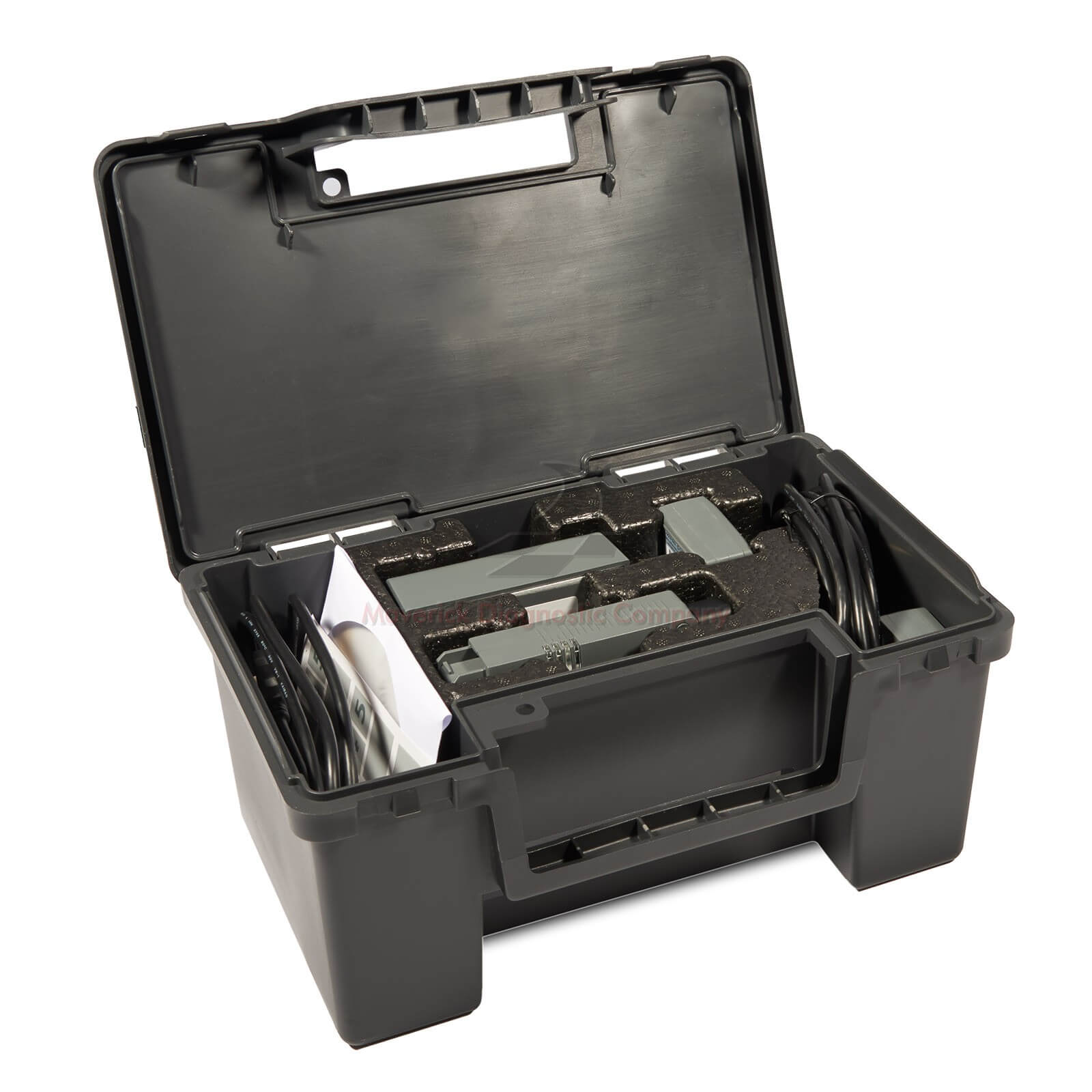

What’s In The Box?

What’s In The Box? only original unit has all these items

  • Diagnosis interface VAS 6154/A (complete unit):
  • Interface module VAS 6154/1
  • Base station VAS 6154/2
  • Y USB cable VAS 6154/3
  • Wireless network module VAS 6154/4
  • Adhesive label (module lettering) VAS 6154/6
  • Storage case
  • Abridged instructions on paper (4 languages) D, GB, F, E
  • USB data stick with relevant manuals
Additional Information

Additional Information

Audi dealer links for downloading and licensing https://erwin.audi.com/erwin/showHome.do VW dealer links for downloading and licensing https://erwin.volkswagen.de/erwin/showHome.do

Keycode Instructions

Key & Key Cut Code Process

1. Obtain your LSID from NASTF.
2. Logon to https://www.keys-vw.com or https://www.keys-audi.com using your LSID credentials and purchase your key or key cut code.

Note: Access to vehicle security information and replacement keys is
provided for security professionals registered with the NASTF (National
Auto Service Task Force) vehicle security professional registry. (LSID)
For more information visit the NASTF Web Site. www.nastf.org

Note: For Canada (Vehicle Security Professional program) (VSP) visit
www.vehiclesecurityprofessional.ca

Product Availabitlity

For all 2000-2007 VW & Audi vehicles, products offered:

  • Cut Code

For all 2008 present VW & Audi vehicles, products offered:

  • Main Key Kit

You may contact a local Volkswagen or Audi dealer to purchase keys for vehicle models years 2007 and prior.


ODIS Service is required to perform key adaptions

The below instructions define the hardware requirements and registration process to utilize ODIS Service.

1.0 – Diagnostic Device Hardware Requirements

□   Windows® 7 Professional 64-Bit or Windows 10® Professional 64-Bit.
     Note: Windows 7 support ends Dec, 2019.

□   The Volkswagen VAS 6150E laptop and VAS 6160E tablet are recommended

     Search for Tool Number VAS6150E or VAS6160E
     Note: This tool includes the VAS 6154 Diagnostic Interface Kit.

□   Commercial laptops/tablets are authorized but should meet or exceed the VAS 6150E specifications.
     E.g.: Windows 10, 8GB RAM, Intel® Core™ i5-6300U vPro™ 2.4GHz and a 250 GB SSD.


2.0 – Diagnostic Interface Requirements

□   The VAS 6154 Diagnostic Interface kit is recommended

     Search for Tool Number VAS6154

□   A J2534 Diagnostic Interface can also be utilized and is available
     from numerous aftermarket websites. Below are a few suggestions:

3.0 – erWin Registration Process

□   An erWin account is required to complete the ODIS Service
     Registration Process, Step 4 below. The registration is free at
     https://erWin.vw.com or https://erWin.audiusa.com. Click the My
     Account Tab and complete the registration.


4.0 – ODIS Service Registration Steps

□   Logon to erWin, click the Vehicle Diagnostics & Reprogramming tab and complete the 5 Steps below.

□   Step 1 – Independent Shop Registration - $100 application fee.

□   Step 2 – Request Security Certificate – One free certificate is
     available with registration. Additional certificates are available
     for $600/year.

□   Step 3 – Obtain Diagnostic License – Free

□   Step 4 – ODIS Service Installation Instructions – Free
